Snowblower · Yard Machines 600 Series Snow Thrower / Two-Stage Snow Thrower

Yard Machines snowblower parts: belts, shear pins and friction disc

Checked October 1, 2026 · From the manufacturer's operator's manual and parts list

Your model

Fits 13 models. Check yours is listed

Where a part differs, the row names the model.

31A-62EE729 600 Series Snow Thrower · 24 in
31A-63BD700 Two-Stage Snow Thrower · 22 in
31AH6ZFH700 600 Series Snow Thrower · 30 in
31AM62EE700 600 Series Snow Thrower
31AM62EE752 600 Series Snow Thrower
31AM63EF700 600 Series Snow Thrower
31AM63EF729 600 Series Snow Thrower
31AM63FF752 Two-Stage Snow Thrower · 26 in
31AS62EE700 Two-Stage Snow Thrower · 24 in
31AS63EE700 Two-Stage Snow Thrower · 24 in
31AS63EF700 Two-Stage Snow Thrower · 26 in
31AS63EF729 Two-Stage Snow Thrower · 26 in
31AS6WEG700 Two-Stage Snow Thrower · 28 in

Shop buttons go to Amazon. As an Amazon Associate, SparkyFits earns from qualifying purchases; it never changes a part we list. How we make money.

Parts for these 13 models

Part	Number and size	Buy
Shear pins	MTD `738-04124A` part details	Shop
Auger belt	MTD `954-04050A` part details Replaces 954-04050, 754-04050	Shop
Drive belt7 of these models. Pick yours above	MTD `954-0367` part details Replaces 754-0367	Shop
Drive belt5 of these models. Pick yours above	MTD `954-04260` part details	Shop
Drive belt31AM63FF752	Not confirmed
Scraper bar31A-62EE729	MTD `790-00120` part details	Shop
Scraper bar11 of these models. Pick yours above	Not confirmed
Scraper bar31AS6WEG700	MTD `790-00118`	Shop
Friction disc	MTD `935-04054A` part details Replaces 935-04054, 735-04054	Shop

Checked October 1, 2026 · 58 sources

Where these parts are

1Shear pins 738-04124A
2Auger belt 954-04050A
3Drive belt
4Scraper bar
5Friction disc 935-04054A

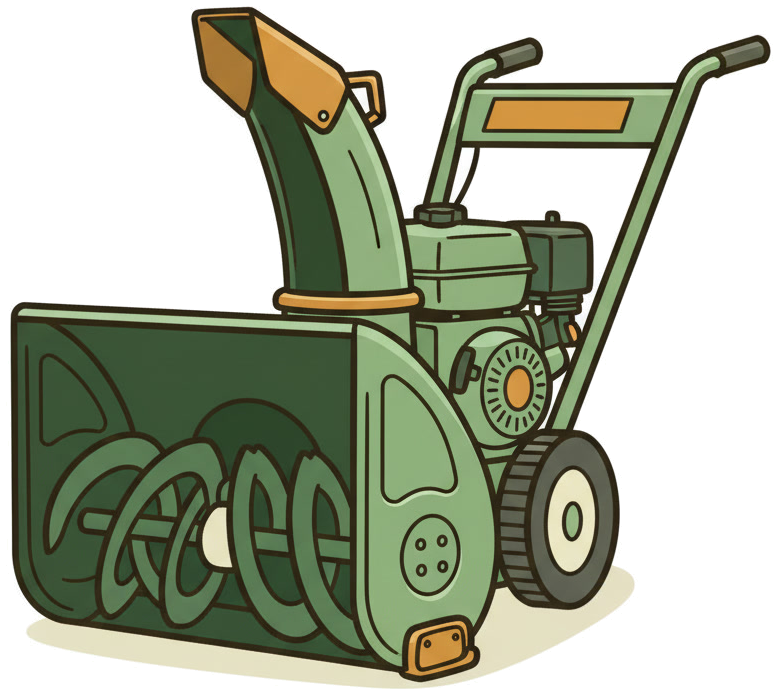

A typical two-stage snowblower. Layout varies by model.

Maintenance schedule

Yard Machines 31A-62EE729, 31AM62EE700, 31AM62EE752, 31AM63EF700, 31AM63EF729

See the maintenance schedule (shared with other models on the same manual).

Yard Machines 31A-63BD700, 31AM63FF752, 31AS62EE700, 31AS63EE700, 31AS63EF700, 31AS63EF729

See the maintenance schedule (shared with other models on the same manual).

As printed in each model's operator's manual, forms 769-04029, 769-08128, 769-04098, 769-05069, 769-07070, 769-04031.

Other machines that use these parts (25)

Troy-Bilt Storm 2690 / Storm 2460 and others shear pins, auger belt, drive belt and friction disc
Cub Cadet 3X 24" HD / 3X 24" and others shear pins and friction disc
Craftsman 24 in. Snow Thrower / 26 in. Snow Thrower shear pins, auger belt, drive belt and friction disc
Craftsman 28 in. Snow Thrower / 30 in. Snow Thrower shear pins and friction disc
Troy-Bilt Storm 3090 shear pins
Yard-Man Two-Stage Snow Thrower shear pins, auger belt, drive belt and friction disc
Craftsman 26 in. Snow Thrower shear pins and friction disc
Troy-Bilt Storm 2410 / Storm 2620 / Storm Tracker 2690 shear pins, auger belt and friction disc
Yard Machines Two-Stage Snow Thrower shear pins and friction disc
Troy-Bilt Vortex 2490 / Storm 3090 and others shear pins and friction disc
Craftsman 22 in. Snow Thrower shear pins
Huskee 600 Series Snow Thrower / Two-Stage Snow Thrower shear pins, auger belt, drive belt and friction disc
Huskee 600 Series Snow Thrower shear pins and friction disc
Cub Cadet 528 SWE / 524 SWE shear pins, auger belt, drive belt and friction disc
Craftsman 30 in. Snow Thrower shear pins and friction disc
Craftsman 26 in. Snow Thrower / 22 in. Snow Thrower / 24 in. Snow Thrower shear pins, auger belt, drive belt and friction disc
Craftsman 26 in. Snow Thrower / 28 in. Snow Thrower / 24 in. Snow Thrower shear pins, auger belt, drive belt and friction disc
Yard Machines Two-Stage Snow Thrower shear pins, auger belt, drive belt and friction disc
Craftsman 22 in. Snow Thrower shear pins
MTD Gold Two-Stage Snow Thrower shear pins, auger belt, drive belt and friction disc
MTD Gold 600 Series Snow Thrower shear pins, auger belt, drive belt and friction disc
Cub Cadet 945 SWE drive belt
Troy-Bilt Polar Blast 4510 drive belt
Troy-Bilt Vortex 2490 scraper bar
Troy-Bilt Vortex 2890 scraper bar and friction disc

Where these numbers come from (58 sources)

Every part number above is printed in at least two of these. Checked October 1, 2026. How we check parts.

Operator's manual 769-04029 · MTD LLC · June 25, 2008
Details
Operator's Manual, 600-Series Snow Thrower, E/F Style (MTD LLC; ManualsLib mirror 506733 filed under 31AM63EF729, text layer): p.1 cover (Form No. 769-04029, June 25, 2008), p.2 Record Product Information (model plate location), p.16-17 maintenance and lubrication, p.19 engine maintenance, p.26 Replacement Parts (954-04050 Auger Drive Belt; 754-0367 Wheel Drive Belt; 684-04153 Friction Wheel Assembly; 935-04054 Friction Wheel Rubber; 738-04124A Shear Pin, 1.50; slide shoes 784-5580, 731-06439, 790-00091, 731-05984 unassigned; shave plates 790-00117/00120/00121/00118 keyed 22/24/26/28 in.; 751-10292 Spark Plug); one belt pair with no width key (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2008 variant
Details
Yard Machines 31A-62EE729 Snow Thrower (2008) (Home Depot) IPL, Drive System (the only variant; seven diagrams): item 56 754-04050 'Belt' superseded to 954-04050A; item 59 754-0367 'V-Belt' superseded to 954-0367; item 80 735-04054 'Friction Wheel' superseded to 935-04054A; item 23 684-04153 'Friction Wheel Assembly, 5.5 OD'; no width captions on any belt line (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2008 variant
Details
Yard Machines 31A-62EE729 Snow Thrower (2008) (Home Depot) IPL, Auger & Auger Housing: item 24 738-04124A 'Shear Pin, .25 x 1.50'; item 27 790-00120/790-00121/790-00118 'Shave Plate, 24"/26"/28"' (plain numbers); skid shoes 784-5580, 731-06439, 731-05984A, 790-00091 unassigned. .Quick Reference: 754-04050 'Auger Belt' superseded to 954-04050A; 754-0367 'Wheel Belt' superseded to 954-0367; 738-04124A 'Shear Pin'; shave plates 790-00120/00121/00118/00119-0637; 656-04025A listed as 'Friction Wheel Rubber'. Engine Assembly 165-SU: 951-10292 'Spark Plug' superseded to 951-10292A (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2008 variant
Details
Yard Machines 31A-62EE729 Snow Thrower (2008) (Home Depot) IPL, Label Map Home Depot: item 1 777D12802 'LABEL:SNOW:HNDPAN:YM:24/6/2/2STG', item 7 777D12765 'LABEL:ENG/SPN:OHV/179' and item 11 777D12759 'LABEL:SNOW:FRNT/RTAUG:YMACH:24', each captioned 'Model 31A-62EE729' (used for machine and part numbers)
Maker's model page · GFP Products LLC (MTD parts store) · retrieved 2026-10-01
Details
GFP model page 31A-62EE729 (titled 'Yard Machines Snow Blower Model 31A-62EE729'; description SNOWTHROWER:2STG 179CC 24 STD; manual list 769-04029 'MANL:OPER:ENGL: E-STYLE 600 SN' (the only operator's manual), 769-04194 'PARTS MANUAL', 770-10770A warranty sheet; no engine manual listed) (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2009 variant
Details
MTD Gold 31BM62KE704 Snow Thrower (2009) (Target) IPL, Drive System (another plate's diagram, cited for the chains only): item 63 954-04050 'Auger Drive Belt - 24" & 26" Models' superseded to 954-04050A; item 78 935-04054 'Friction Wheel Rubber' superseded to 935-04054A. Records the manual-number half of each converging chain (ruling 5) (used for machine and part numbers)
Maker's model page · GFP Products LLC (MTD parts store) · retrieved 2026-10-01
Details
GFP part page 954-04050A 'Snow Blower Auger Belt' (Belt Length 35 in, Top Width .5 in, application Auger; 'This part replaces: 490-501-C079, 490-501-F079, 490-501-Y079, 754-04050, 754-04050A, 954-04050, CMXGZAM501079, OEM-754-04050'). MTD's own supersession record for both printed numbers; cited for the chain only, never as a part-number source on its own (ruling 1) (used for machine and part numbers)
Maker's model page · GFP Products LLC (MTD parts store) · retrieved 2026-10-01
Details
GFP part page 935-04054A 'Friction Wheel Rubber 5.5 OD' ('This part replaces: 735-04054, 735-04054A, 935-04054'). MTD's own supersession record for both printed numbers; cited for the chain only (ruling 1) (used for machine and part numbers)
Operator's manual 769-08128 · MTD LLC · June 4, 2012
Details
Operator's Manual, Two-Stage Snow Thrower, 500 Series & 600 Series (cover; maintenance pp.22-23; Replacement Parts p.30) (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2012 variant
Details
Yard Machines 31A-63BD700 Snow Thrower (2012) IPL: .Quick Reference 31A-63BD700 (Auger Drive Belt 954-04050 superseded to 954-04050A; Wheel Drive Belt 954-04260; Shear Pin 738-04124A; Friction Wheel Assembly 684-04360; Friction Wheel Rubber 935-04054 superseded to 935-04054A; Shave Plate 790-00117-0638 superseded to -0637; Slide Shoe 784-5580-0637) (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2015 variant
Details
Yard Machines 31A-63BD700 Snow Thrower (2015) IPL: Auger & Housing (Shear Pin 738-04124A; Shave Plate, 22" 790-00117-0638) and Drive System (954-04050A 'Auger Drive Belt, Standard', 954-04260 'Wheel Drive Belt, Standard', 935-04054 superseded to 935-04054A) diagrams; engine diagrams 170-SU (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2013, 2014 variants
Details
Yard Machines 31A-63BD700 Snow Thrower IPL, 2013 and 2014 .Quick Reference (2013: 954-04050 superseded to 954-04050A; 2014: 954-04050A; both 954-04260, 738-04124A, 684-04360A, 935-04054 superseded to 935-04054A, plain 790-00117; engine diagrams 170-SU) (used for machine and part numbers)
Maker's model page · GFP Products LLC (Yard Machines brand site and MTD parts store) · retrieved 2026-10-01
Details
Yard Machines 22" Two-Stage Snow Thrower - 31A-63BD700 (GFP prior-year model page; description SNOWTHROWER:2STG:22 D STY STD; manual list 769-08128, 769-09005, 769-09765, 769-10807, 769-10813, engine 769-06052B/C/E/F, parts 769-08145/09059/09933/10891) (used for machine and part numbers)
Operator's manual 769-04098 · MTD LLC · August 6, 2008
Details
Operator's Manual, 600-Series Snow Thrower, E/F Style (MTD LLC; ManualsLib mirror 506707 filed under 31AH6ZFH729, text layer): p.1 cover (Form No. 769-04098, August 6, 2008), p.2 Record Product Information (model plate location; 'refer to the engine manufacturer's Owner's/Operator's Manual, packed separately'), p.24 Replacement Parts (954-04050 Auger Drive Belt; 754-0367 Wheel Drive Belt; 684-04153 Friction Wheel Assembly; 935-04054 Friction Wheel Rubber; 738-04124A Shear Pin, 1.50; slide shoes 784-5580, 731-06439, 790-00091, 731-05984A unassigned; shave plates 790-00117/00120/00121/00118/00119 keyed 22/24/26/28/30 in.; BS-794696 Key; 759-3336 Champion RC12YC Resistor Spark Plug); one belt pair with no width key (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2008 variant
Details
Yard Machines 31AH6ZFH700 Snow Thrower (2008) IPL, Drive System: item 56 754-04050 'Belt' superseded to 954-04050A; item 59 754-0367 'V-Belt' superseded to 954-0367; item 80 735-04054 'Friction Wheel' superseded to 935-04054A; item 23 684-04153 'Friction Wheel Assembly, 5.5 OD'; no width captions. .Quick Reference: 754-04050 'Auger Belt' superseded to 954-04050A; 754-0367 'Wheel Belt' superseded to 954-0367; 738-04124A 'Shear Pin'; shave plates 790-00120/00121/00118/00119-0637 (24-30 in.); 759-3336 'Spark Plug - B&S' superseded to RC12YC. Auger & Auger Housing: 738-04124A 'Shear Pin, .25 x 1.50'; housings and shave plates 24-28 in. only (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2009 variant
Details
Yard Machines 31AH6ZFH700 Snow Thrower (2009) IPL: .Quick Reference, Auger & Auger Housing, Drive System and Label Map each list the same part numbers as the 2008 variant line for line (754-04050 and 754-0367 to 954-04050A and 954-0367; 735-04054 to 935-04054A; 738-04124A). Label Map: item 4 777D12756 'LABEL:SNOW:FRT/HNDL/PAN:YM:6/2', item 11 777I23052 'E/F PNL:ST INSTR:B&S' ('Model 31AS6WEG700 & 31AH6ZFH700') and item 15 777D12755 'LABEL:SNOW:FRNT/RTAUG:YMACH:30', captioned 'Model 31AH6ZFH700' (used for machine and part numbers)
Maker's model page · GFP Products LLC (MTD parts store) · retrieved 2026-10-01
Details
GFP model page 31AH6ZFH700 (titled 'MTD Snow Blower Model 31AH6ZFH700'; description SNOWTHROWER:2STG 305CC 30 STD; manual list 769-04098 'MANL:OPER:ENGL: F-STY 600 WORM' (the only operator's manual), 769-04194 'MANL:PARTS:2008:31XX6XX', 770-10770A warranty sheet; no engine manual listed) (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2009 variant
Details
Yard Machines 31AM62EE700 Snow Thrower (2009) IPL, Drive System: item 63 954-04050 'Auger Drive Belt - 24" & 26" Models' superseded to 954-04050A (954-04195 listed for 28" & 30"); item 64 954-0367 'Wheel Drive Belt - 24" & 26" Models' (954-04201 listed for 28" & 30"); item 78 935-04054 'Friction Wheel Rubber' superseded to 935-04054A; Auger & Auger Housing: item 17 738-04124A 'Shear Pin, .25 x 1.50'; engine diagram 'Engine Assembly 365-SUB' (used for machine and part numbers)
Maker's model page · GFP Products LLC (MTD brand parts store) · retrieved 2026-10-01
Details
GFP model page 31AM62EE700 (titled 'MTD Snow Blower Model 31AM62EE700'; description SNOWTHROWER:2STG 179CC 24 STD; manual list 769-04029 'MANL:OPER:ENGL: E-STYLE 600 SN', 769-05069 'MANL:OPER:ENGL: E-STYLE 600', parts manuals 769-04194 (2008) and 769-05284 (2009), warranty 770-10770A) (used for machine and part numbers)
Operator's manual 769-05069 · MTD LLC · June 1, 2009
Details
Operator's Manual, 600-Series Snow Thrower, E/F Style (MTD LLC; ManualsLib mirror filed under 31AM62EE706): p.1 cover (form 769-05069, June 1, 2009), p.2 Record Product Information (model plate location), pp.17-18 maintenance and lubrication, p.20 engine maintenance (oil check before each use and every five hours), p.27 Replacement Parts (954-04050 Auger Drive Belt; 754-0367 Wheel Drive Belt; 684-04153 Friction Wheel Assembly; 935-04054 Friction Wheel Rubber; 738-04124A Shear Pin, 1.50; four slide shoes 784-5580, 731-06439, 790-00091, 731-05984A unassigned; shave plates 790-00117/00120/00121/00118 keyed 22/24/26/28 in.; 951-10292 Spark Plug) (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2009 variant
Details
Yard Machines 31AM62EE752 Snow Thrower (2009) (Walmart) IPL: Drive System (954-04050 'Auger Drive Belt - 24" & 26" Models' superseded to 954-04050A, beside 954-04195 for 28" & 30"; 954-0367 'Wheel Drive Belt - 24" & 26" Models', beside 954-04201 for 28" & 30"; 935-04054 'Friction Wheel Rubber' superseded to 935-04054A) and .Quick Reference (same belts, 738-04124A Shear Pin, 951-10292 Spark Plug superseded to 951-10292A); Auger & Auger Housing 738-04124A 'Shear Pin, .25 x 1.50'; engine diagram 'Engine Assembly 365-SUB' (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2008 variant
Details
Yard Machines 31AM62EE752 Snow Thrower (2008) (Walmart) IPL: Drive System (754-04050 'Belt' superseded to 954-04050A; 754-0367 'V-Belt' superseded to 954-0367; 735-04054 'Friction Wheel' superseded to 935-04054A) and .Quick Reference (754-04050 Auger Belt superseded to 954-04050A; 754-0367 Wheel Belt superseded to 954-0367; 738-04124A Shear Pin; 751-10292 'Spark Plug - MTD SU & SUA' superseded to 951-10292A); Auger & Auger Housing 738-04124A; engine diagram 'Engine Assembly 365-SUA' (used for machine and part numbers)
Maker's model page · GFP Products LLC (Yard Machines brand parts store) · retrieved 2026-10-01
Details
GFP model page 31AM62EE752 (titled 'Yard Machines Snow Blower Model 31AM62EE752'; description SNOWTHROWER:2STG 179CC 24 STD; manual list 769-04029 'MANL:OPER:ENGL: E-STYLE 600 SN', 769-05069 'MANL:OPER:ENGL: E-STYLE 600', parts manuals 769-04194 and 769-05284 (2009), warranty 770-10770A) (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2009 variant
Details
Yard Machines 31AM63EF700 Snow Thrower (2009) IPL, Drive System: item 63 954-04050 'Auger Drive Belt - 24" & 26" Models' superseded to 954-04050A (954-04195 listed for 28" & 30"); item 64 954-0367 'Wheel Drive Belt - 24" & 26" Models' (954-04201 listed for 28" & 30"); item 78 935-04054 'Friction Wheel Rubber' superseded to 935-04054A; Auger & Auger Housing: item 17 738-04124A 'Shear Pin, .25 x 1.50'; engine diagram 'Engine Assembly 370-SUB' (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2008 variant
Details
Yard Machines 31AM63EF700 Snow Thrower (2008) IPL, Drive System: item 56 754-04050 'Belt' superseded to 954-04050A; item 59 754-0367 'V-Belt' superseded to 954-0367; item 80 735-04054 'Friction Wheel' superseded to 935-04054A; engine diagram 'Engine Assembly 370 SUA' (used for machine and part numbers)
Maker's model page · GFP Products LLC (MTD brand parts store) · retrieved 2026-10-01
Details
GFP model page 31AM63EF700 (titled 'MTD Snow Blower Model 31AM63EF700'; description SNOWTHROWER:2STG 208CC 26 STD; manual list 769-04029 'MANL:OPER:ENGL: E-STYLE 600 SN', 769-05069 'MANL:OPER:ENGL: E-STYLE 600', parts manuals 769-04194 (2008) and 769-05284 (2009), warranty 770-10770A) (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2009 (Home Depot) variant
Details
Yard Machines 31AM63EF729 Snow Thrower (2009 Home Depot) IPL, Drive System: item 63 954-04050 'Auger Drive Belt - 24" & 26" Models' superseded to 954-04050A (954-04195 listed for 28" & 30"); item 64 954-0367 'Wheel Drive Belt - 24" & 26" Models' (954-04201 listed for 28" & 30"); item 78 935-04054 'Friction Wheel Rubber' superseded to 935-04054A; Auger & Auger Housing: item 17 738-04124A 'Shear Pin, .25 x 1.50'; engine diagram 'Engine Assembly 370-SUB' (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2008 (Home Depot) variant
Details
Yard Machines 31AM63EF729 Snow Thrower (2008, Home Depot) IPL: .Quick Reference (754-04050 Auger Belt superseded to 954-04050A; 754-0367 Wheel Belt superseded to 954-0367; 738-04124A Shear Pin; 656-04025A friction wheel disc listed as 'Friction Wheel Rubber'; 751-10292 Spark Plug - MTD SU & SUA superseded to 951-10292A) and Drive System (item 56 754-04050 'Belt' superseded to 954-04050A; item 59 754-0367 'V-Belt' superseded to 954-0367; item 80 735-04054 'Friction Wheel' superseded to 935-04054A); engine diagram 'Engine Assembly 370 SUA' (used for machine and part numbers)
Maker's model page · GFP Products LLC (MTD brand parts store) · retrieved 2026-10-01
Details
GFP model page 31AM63EF729 (titled 'Yard Machines Snow Blower Model 31AM63EF729'; description SNOWTHROWER:2STG 208CC 26 STD; manual list 769-04029 'MANL:OPER:ENGL: E-STYLE 600 SN', 769-05069 'MANL:OPER:ENGL: E-STYLE 600', parts manuals 769-04194 (2008) and 769-05284 (2009), warranty 770-10770A) (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2011 variant
Details
Yard Machines 31AM63FF752 Snow Thrower (2011) IPL: Drive System (item 63 954-04050 'Auger Drive Belt, Standard' superseded to 954-04050A; item 64 954-04260 'Wheel Drive Belt, Standard'; large-block pair 954-04195/954-04201A captioned for 478/483/490 engines; item 78 935-04054 'Friction Wheel Rubber' superseded to 935-04054A) and Auger & Auger Housing (item 17 738-04124A 'Shear Pin, .25 x 1.50'); engine diagrams 370-SUB-11 (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2012, 2013 variants
Details
Yard Machines 31AM63FF752 Snow Thrower (2012) and (2013) IPL: Drive System (954-04050 'Auger Drive Belt, Standard (265, 270, 370 engine)' superseded to 954-04050A; 954-04260 'Wheel Drive Belt, Standard'; 935-04054 superseded to 935-04054A) and Auger & Housing (738-04124A 'Shear Pin, .25 x 1.50'; 2013 only 'Auger Housing Assembly, 26"' 684-04264-0638 and 'Shave Plate, 26"' 790-00121-0638 superseded to -0637); engine diagrams 370-SUC (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2014, 2015 variants
Details
Yard Machines 31AM63FF752 Snow Thrower (2014) and (2015) IPL: Drive System (954-04050A 'Auger Drive Belt, Standard'; 954-04260 'Wheel Drive Belt, Standard'; 935-04054 superseded to 935-04054A) and Auger & Housing (738-04124A 'Shear Pin, .25 x 1.50'; only 'Auger Housing Assembly, 26"' and 'Shave Plate, 26"'); engine diagrams 370-SUC (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2008 (Walmart) variant
Details
Yard Machines 31AM63FF752 Snow Thrower (2008) (Walmart) IPL: Drive System (item 56 754-04050 'Belt' superseded to 954-04050A; item 59 754-0367 'V-Belt' superseded to 954-0367; item 80 735-04054 'Friction Wheel' superseded to 935-04054A) and Auger & Auger Housing (item 24 738-04124A 'Shear Pin, .25 x 1.50'; 24/26/28 in. housings; 790-00121 'Shave Plate, 26"'); engine diagram 'Engine Assembly 370' (used for machine and part numbers)
Maker's model page · GFP Products LLC (MTD parts store) · retrieved 2026-10-01
Details
GFP model page 31AM63FF752 (titled 'Yard Machines Snow Blower Model 31AM63FF752'; description SNOWTHROWER:2STG:26 F STY STD; manual list 769-04029 'MANL:OPER:ENGL: E-STYLE 600 SN', 769-07070 and 769-08128 'MANL:OPER:ENGL:31X:5XX/6XX', 769-09005 and 769-09765 bilingual, 769-10807, 769-11510, supplements 769-10813/769-11511, engine 769-06052B/C/E/F/G, parts 769-04194 (2008), 769-07021 (2011), 769-08145 (2012), 769-09059 (2013), 769-09933 (2014), 769-10891 (2015)) (used for machine and part numbers)
Operator's manual 769-07070 · MTD LLC · May 17, 2011
Details
Operator's Manual, Two-Stage Snow Thrower, 500 Series & 600 Series (MTD LLC; ManualsLib mirror filed under 31AH65LG704): p.1 cover (form 769-07070, May 17, 2011), p.2 Record Product Information (model plate location), pp.22-23 maintenance and lubrication, p.30 Replacement Parts (954-04050 Auger Drive Belt (22", 24" & 26"); 954-04260 Wheel Drive Belt (22", 24" & 26"); 954-04195 and 954-04201A for 28" & 30"; 935-04054 Friction Wheel Rubber (all models); 738-04124A Shear Pin, 1.50; slide shoes 784-5580, 731-06439, 790-00091, 731-05984A unassigned; shave plates 790-00117/00120/00121/00118/00119 keyed 22/24/26/28/30 in.; 951-10292 Spark Plug) (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2011 variant
Details
Yard Machines 31AS62EE700 Snow Thrower (2011) IPL: Drive System (item 63 954-04050 'Auger Drive Belt, Standard' superseded to 954-04050A, beside 954-04195 'Auger Drive Belt, 4-Way large Block (478-SUA, 483-SUA or 490-SUA Engines)'; item 64 954-04260 'Wheel Drive Belt, Standard', beside 954-04201A '4-Way large block'; item 78 935-04054 'Friction Wheel Rubber' superseded to 935-04054A) and Auger & Auger Housing (738-04124A 'Shear Pin, .25 x 1.50'; 790-00120-0638 'Shave Plate, 24" Red' superseded to 790-00120-0637); engine diagrams 265-SU-11 (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2010 variant
Details
Yard Machines 31AS62EE700 Snow Thrower (2010) IPL: Drive System (954-04050 'Auger Drive Belt, Standard' superseded to 954-04050A; 954-04260 'Wheel Drive Belt, Standard'; 935-04054 'Friction Wheel Rubber' superseded to 935-04054A; 954-04195/954-04201A captioned for 478-SU, 483-SU or 490-SU engines) and Auger & Housing (738-04124A; shave plates and housings for every width); engine diagram 'Engine Assembly 265-SU' (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2015 variant
Details
Yard Machines 31AS62EE700 Snow Thrower (2015) IPL: Drive System (954-04050A 'Auger Drive Belt, Standard'; 954-04260 'Wheel Drive Belt, Standard'; 935-04054 'Friction Wheel Rubber' superseded to 935-04054A) and Auger & Housing (738-04124A 'Shear Pin, .25 x 1.50'; 684-04265-0638 'Auger Housing Assembly, 24"'; 790-00120-0638 'Shave Plate, 24"' superseded to 790-00120-0637; 784-5580-0637 'Skid Shoe, Steel'); engine diagrams 265-SUA (used for machine and part numbers)
Maker's model page · GFP Products LLC (MTD brand parts store) · retrieved 2026-10-01
Details
GFP model page 31AS62EE700 (titled 'MTD Snow Blower Model 31AS62EE700'; description SNOWTHROWER:2STG 179CC 24 STD; manual list 769-07070 'MANL:OPER:ENGL:31X:5XX/6XX', 769-06032 'MANL:OPER:ENGL: E-STYLE 600', engine 769-06052A/B, parts 769-06277 (2010), 769-07021 (2011), 769-10891 (2015)) (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2012 variant
Details
Yard Machines 31AS63EE700 Snow Thrower (2012) IPL: .Quick Reference 31AS63EE700 (954-04050 'Auger Drive Belt' superseded to 954-04050A; 954-04260 'Wheel Drive Belt'; 738-04124A 'Shear Pin'; 935-04054 'Friction Wheel Rubber' superseded to 935-04054A; 790-00120-0638 'Shave Plate' superseded to 790-00120-0637; 784-5580-0637 'Slide Shoe, Standard (steel)'; 951-10292 Spark Plug superseded to 951-10292A); engine diagrams 270-SUA (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2015 variant
Details
Yard Machines 31AS63EE700 Snow Thrower (2015) IPL: Drive System (954-04050A 'Auger Drive Belt, Standard'; 954-04260 'Wheel Drive Belt, Standard'; 935-04054 'Friction Wheel Rubber' superseded to 935-04054A) and Auger & Housing (738-04124A 'Shear Pin, .25 x 1.50'; 790-00120-0638 'Shave Plate, 24"' superseded to 790-00120-0637; 784-5580-0637 'Skid Shoe, Steel'); engine diagrams 270-SUA (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2016, 2017 variants
Details
Yard Machines 31AS63EE700 Snow Thrower (2016) and (2017) IPL: .Quick Reference (954-04050A Auger Drive Belt; 954-04260 Wheel Drive Belt; 738-04124A Shear Pin; 935-04054A Friction Wheel Rubber; plain 790-00120 Shave Plate; plain 784-5580 Slide Shoe; 951-10292 Spark Plug superseded to 951-10292A) and 2016 Engine & Drive (954-04050A 'V-BELT .500 x 35.'; 954-04260 'V-BELT 3L x 34.18'); no engine diagrams in either variant (used for machine and part numbers)
Maker's model page · GFP Products LLC (Yard Machines brand parts store) · retrieved 2026-10-01
Details
Yard Machines 24" Two-Stage Snow Blower - 31AS63EE700 (GFP prior-year model page; description SNOWTHROWER:2STG:24 E STY STD; manual list 769-08128, 769-09005, 769-09765, 769-10807, 769-11510, 769-11510C, supplements 769-10813, 769-11511, engine 769-06052B/C/E/F/G and 769-11570C, parts 769-08145/09059/09933/10891) (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2010 variant
Details
Yard Machines 31AS63EF700 Snow Thrower (2010) IPL: Drive System (item 63 954-04050 'Auger Drive Belt, Standard' superseded to 954-04050A, beside 954-04195 'Auger Drive Belt, 4-Way Large Block (478-SU, 483-SU or 490-SU Engines)'; item 64 954-04260 'Wheel Drive Belt, Standard', beside 954-04201A '4-Way Large Block'; item 78 935-04054 'Friction Wheel Rubber' superseded to 935-04054A) and Auger & Housing (item 17 738-04124A 'Shear Pin, .25 x 1.50'; housings and shave plates listed for 22 to 30 in.); engine diagram 'Engine Assembly 270-SU' (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2011, 2012 variants
Details
Yard Machines 31AS63EF700 Snow Thrower (2011) and (2012) IPL: Drive System (954-04050 'Auger Drive Belt, Standard' (2012: '(265, 270, 370 engine)') superseded to 954-04050A; 954-04260 'Wheel Drive Belt, Standard'; large-block pair captioned for 478/483 engines; 935-04054 superseded to 935-04054A) and Auger & Auger Housing (738-04124A 'Shear Pin, .25 x 1.50'); engine diagrams 270-SU-11 (2011), 270-SUA (2012) (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2013 variant
Details
Yard Machines 31AS63EF700 Snow Thrower (2013) IPL: Drive System (954-04050 'Auger Drive Belt, Standard' superseded to 954-04050A; 954-04260 'Wheel Drive Belt, Standard'; no large-block belts listed; 935-04054 superseded to 935-04054A) and Auger & Housing (738-04124A 'Shear Pin, .25 x 1.50'; only 684-04264-0638 'Auger Housing Assembly, 26"' and 790-00121-0638 'Shave Plate, 26"' superseded to 790-00121-0637; 784-5580-0637 'Slide Shoe, Standard Steel'); engine diagrams 270-SUA (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2014, 2015 variants
Details
Yard Machines 31AS63EF700 Snow Thrower (2014) and (2015) IPL: Drive System (954-04050A 'Auger Drive Belt, Standard'; 954-04260 'Wheel Drive Belt, Standard'; 935-04054 superseded to 935-04054A) and Auger & Housing (738-04124A 'Shear Pin, .25 x 1.50'; only 'Auger Housing Assembly, 26"' and 'Shave Plate, 26"' 790-00121-0638 superseded to -0637); engine diagrams 270-SUA (used for machine and part numbers)
Maker's model page · GFP Products LLC (MTD parts store) · retrieved 2026-10-01
Details
GFP model page 31AS63EF700 (description SNOWTHROWER:2STG:26 F STY STD; manual list 769-07070 'MANL:OPER:ENGL:31X:5XX/6XX', 769-09765 'MANL:OPER:BILING:31X:5XX/6XX:G', 769-11510 'MANL:OPER:BILING:31X:5XX/6XX', 769-06032 'MANL:OPER:ENGL: E-STYLE 600', supplement 769-11511, engine 769-06052A/B/E/G, parts 769-06277 (2010), 769-07021 (2011), 769-08145 (2012), 769-09059 (2013), 769-09933 (2014), 769-10891 (2015)) (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2011 variant
Details
Yard Machines 31AS63EF729 Snow Thrower (2011) IPL: Drive System (item 63 954-04050 'Auger Drive Belt, Standard' superseded to 954-04050A, beside 954-04195 'Auger Drive Belt, 4-Way large Block (478-SUA, 483-SUA or 490-SUA Engines)'; item 64 954-04260 'Wheel Drive Belt, Standard', beside 954-04201A '4-Way large block'; item 78 935-04054 'Friction Wheel Rubber' superseded to 935-04054A) and Auger & Auger Housing (item 17 738-04124A 'Shear Pin, .25 x 1.50'; housings and shave plates for every width); engine diagrams 270-SU-11 (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2012 variant
Details
Yard Machines 31AS63EF729 Snow Thrower (2012) IPL: Drive System (954-04050 'Auger Drive Belt, Standard (265, 270, 370 engine)' superseded to 954-04050A; 954-04260 'Wheel Drive Belt, Standard (265, 270, 370 engine)'; large-block pair captioned '(478, 483 engine)'; 935-04054 superseded to 935-04054A) and Auger & Auger Housing (738-04124A 'Shear Pin, .25 x 1.50'); engine diagrams 270-SUA (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2013 variant
Details
Yard Machines 31AS63EF729 Snow Thrower (2013) IPL: Drive System (954-04050 'Auger Drive Belt, Standard' superseded to 954-04050A; 954-04260 'Wheel Drive Belt, Standard'; no large-block belts listed; 935-04054 superseded to 935-04054A) and Auger & Housing (738-04124A 'Shear Pin, .25 x 1.50'; only 684-04264-0638 'Auger Housing Assembly, 26"' and 790-00121-0638 'Shave Plate, 26"' superseded to 790-00121-0637; 784-5580-0637 'Slide Shoe, Standard Steel'); engine diagrams 270-SUA (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2014, 2015 variants
Details
Yard Machines 31AS63EF729 Snow Thrower (2014) and (2015) IPL: Drive System (954-04050A 'Auger Drive Belt, Standard'; 954-04260 'Wheel Drive Belt, Standard'; 935-04054 superseded to 935-04054A) and Auger & Housing (738-04124A 'Shear Pin, .25 x 1.50'; only 'Auger Housing Assembly, 26"' and 'Shave Plate, 26"' 790-00121-0638 superseded to -0637); engine diagrams 270-SUA (used for machine and part numbers)
Maker's model page · GFP Products LLC (MTD parts store) · retrieved 2026-10-01
Details
GFP model page 31AS63EF729 (titled 'Yard Machines Snow Blower Model 31AS63EF729'; description SNOWTHROWER:2STG 208CC 26 STD; manual list 769-07070 and 769-08128 'MANL:OPER:ENGL:31X:5XX/6XX', 769-09765 'MANL:OPER:BILING:31X:5XX/6XX:G', 769-10807 'MANL:OPER:ENG:31X:5XX/6XX', supplements 769-10811/769-10813, engine 769-06052B/E/F, parts 769-07021 (2011), 769-08145 (2012), 769-09059 (2013), 769-09933 (2014), 769-10891 (2015)) (used for machine and part numbers)
Operator's manual 769-04031 · MTD LLC · June 17, 2008
Details
Operator's Manual, 600-Series Snow Thrower, E/F Style (MTD LLC; ManualsLib mirror 506777 filed under 31AS6WEG700, text layer): p.1 cover (Form No. 769-04031, June 17, 2008), p.7 contents of carton ('One Briggs & Stratton Engine Operator's Manual'), p.24 Replacement Parts (954-04050 Auger Drive Belt; 754-0367 Wheel Drive Belt; 684-04153 Friction Wheel Assembly; 935-04054 Friction Wheel Rubber; 738-04124A Shear Pin, 1.50; slide shoes 784-5580, 731-06439, 790-00091, 731-05984 unassigned; shave plates 790-00117/00120/00121/00118 keyed 22/24/26/28 in.; 759-3336 Champion RC12YC Resistor Spark Plug); one belt pair with no width key (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2008 variant
Details
Yard Machines 31AS6WEG700 Snow Thrower (2008) IPL: Drive System (item 56 754-04050 'Belt' superseded to 954-04050A; item 59 754-0367 'V-Belt' superseded to 954-0367; item 80 735-04054 'Friction Wheel' superseded to 935-04054A; items 75-77 '(for ZS Engine)'), Auger & Auger Housing (item 24 738-04124A 'Shear Pin, .25 x 1.50'; item 27 790-00120/790-00121/790-00118 'Shave Plate, 24"/26"/28"' (plain numbers); housings 24-28 in.; skid shoes 784-5580, 731-06439, 731-05984A, 790-00091 unassigned), .Quick Reference (754-04050 'Auger Belt' superseded to 954-04050A; 754-0367 'Wheel Belt' superseded to 954-0367; 738-04124A 'Shear Pin'; shave plates 790-00120/00121/00118/00119-0637; 656-04025A listed as 'Friction Wheel Rubber'; 759-3336 'Spark Plug - B&S' superseded to RC12YC) (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2009 variant
Details
Yard Machines 31AS6WEG700 Snow Thrower (2009) IPL: four diagrams only (Drive System, Label Map, Panel E Style, Standard 2 way Chute; no Auger & Housing or Quick Reference): Drive System (item 56 754-04050 'Belt' superseded to 954-04050A; item 59 754-0367 'V-Belt' superseded to 954-0367; item 80 735-04054 superseded to 935-04054A), Label Map (777D12766 'LABEL:SNOW:HNDLPANL:YMACH:28/6/2' and 777D12764 'LABEL:SNOW:FRNT/RTAUG:YMACH:28', both 'Model 31AS6WEG700'; 777I23052 'LABEL:SNOW:E/F PNL:ST INSTR:B&S' 'Model 31AS6WEG700 & 31AH6ZFH700') (used for machine and part numbers)
Maker's model page · GFP Products LLC (MTD parts store) · retrieved 2026-10-01
Details
GFP model page 31AS6WEG700 (titled 'MTD Snow Blower Model 31AS6WEG700'; description SNOWTHROWER:2STG 250CC 28 STD; manual list 769-04031 'MANL:OPER:ENGL: F-STYLE 600 SN' (the only operator's manual), 769-04194 'PARTS MANUAL', 770-10770A warranty sheet) (used for machine and part numbers)
Parts list · PartsTree (dealer copy of MTD IPL) · 2008 and 2009
Details
Yard Machines 31AS6WEG700 Snow Thrower (2008) IPL: Drive System (item 56 754-04050 'Belt' superseded to 954-04050A; item 80 735-04054 'Friction Wheel' superseded to 935-04054A); the 2009 Drive System prints the same rows (used for machine and part numbers)
